The Conjoined 35° Oblique Rail Cutter Tower Tail Seat Precision CNC Lathe is a really practical mach...

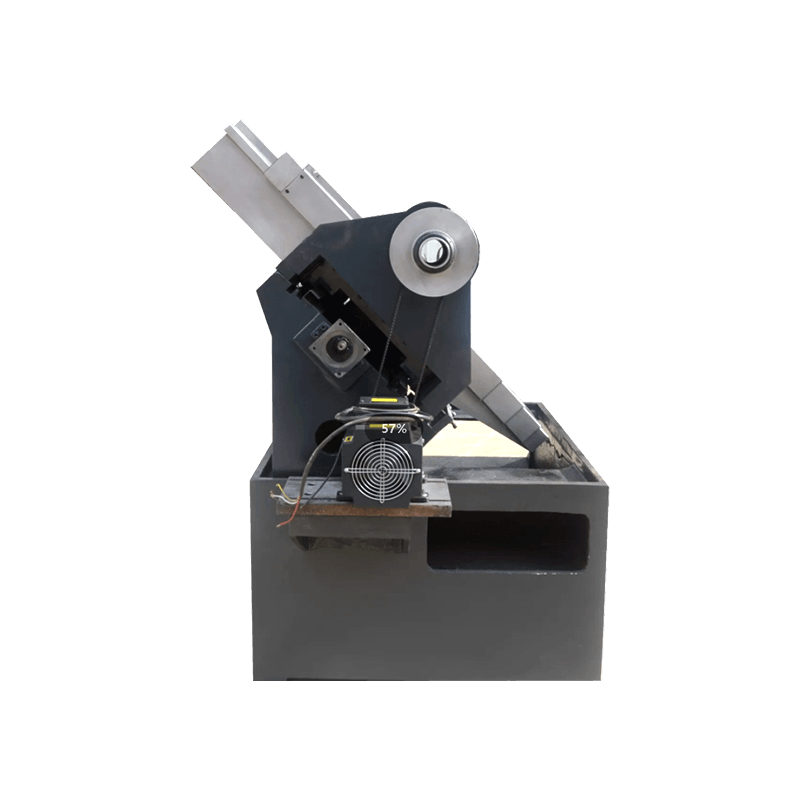

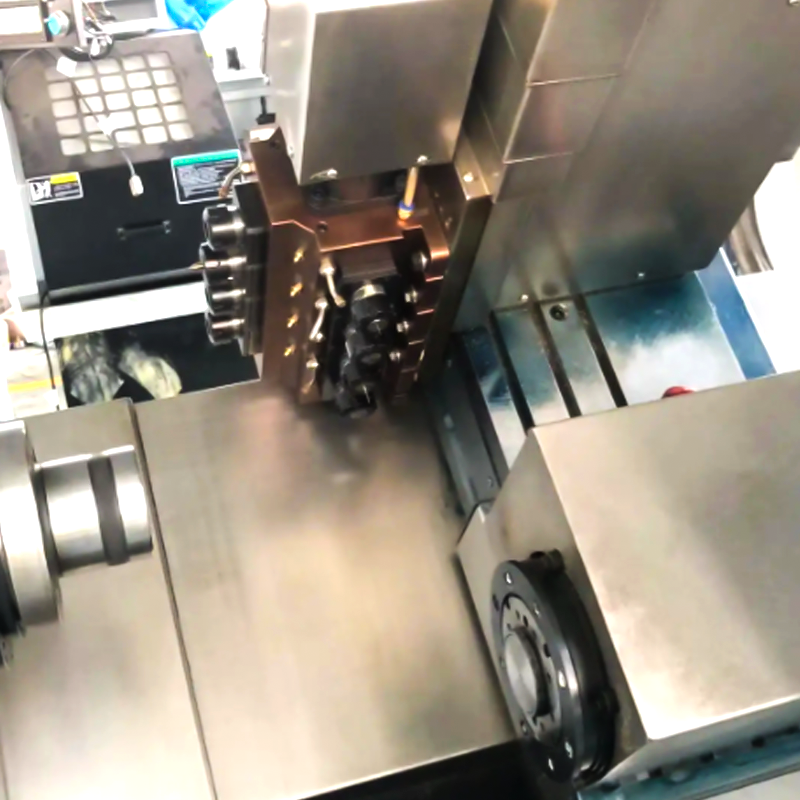

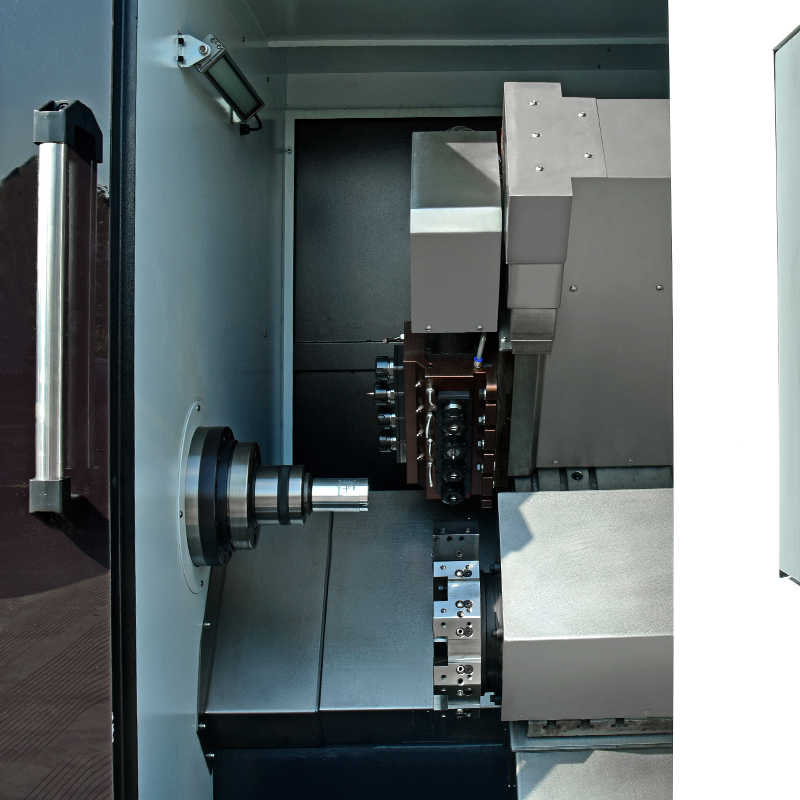

See DetailsThe 4+4 Type Precision CNC Lathe With Conjoined Oblique Rail Cutter Tower is a really practical, multifunctional machining solution built for precision turning and combined cutting jobs on the shop floor. Its 45° slant bed layout makes a big difference because it gives you a usable cutting space, lets metal chips slide away naturally, and keeps your parts steadily supported during production. The independent sleeve-type spindle unit runs on precision angular contact bearings and dynamic balancing to ensure a steady high-speed spin without throwing a fit.Wide linear guideways paired with precision ball screws go a long way in keeping your axis travel rigid and your positioning accuracy right where it needs to be. Plus, a widened T-style middle slide gives you plenty of room to mount gang tooling, horizontal turrets, or live tool blocks, while the mechanical power unit lets your operators handle integrated drilling, milling, and turning-milling setups all on one machine.
| Projects | unit | GY-46CF | |
| PROCESSING CAPACITY | Maximum turning diameter of bed | mm | 460 |
| Maximum rotary diameter of support plate | mm | 180 | |
| Maximum machining length | mm | 350 | |
| MAIN SHAFT | Spindle end form | \ | A2-6 |
| Diameter of main shaft through hole | mm | 66 | |
| Maximum rod passing diameter | mm | 52 | |
| Maximum spindle speed | r/min | 4000 | |
| Spindle shift mode | \ | Servo infinitely variable speed | |
| Main motor power | kw | 7.5 | |
| Chuck type | \ | Hydraulic collets | |
| Chuck size | inch/mm | 8 | |
| FEED | X-axis stroke | mm | 1000 |
| Z-axis stroke | mm | 550 | |
| X-axis fast-moving velocity | m/min | 18 | |
| Z-axis fast-moving velocity | m/min | 20 | |
| X-axis motor torque | N·m | 11.5 | |
| Z-axis motor torque | N·m | 11.5 | |
| Type of rail | \ | Roller guideways | |
| X-axis guide rail specifications | mm | 30 | |
| Z-axis guide rail specifications | mm | 35 | |
| X-axis made screw specification | mm | 3210 | |
| Z-axis made screw specification | mm | 4010 | |
| TOOL REST | Tool rest type | \ | 8-station hydraulic turret / 4+4 lifting power head |
| Square tool/Boring tool size | mm | 20*20/φ25 | |
| TAIL SEAT | Tail seat form | \ | \ |
| Tail seat sleeve taper | \ | \ | |
| Tail seat sleeve diameter | mm | \ | |
| Tail seat sleeve stroke | mm | \ | |
| OTHER | Machine tool size (length* width* height) | mm | 2300*2000*2100 |
| Machine weight | kg | 3800 | |
