Technical Characteristics: The machine tool is of high precision, and the spindle is supported by hi...

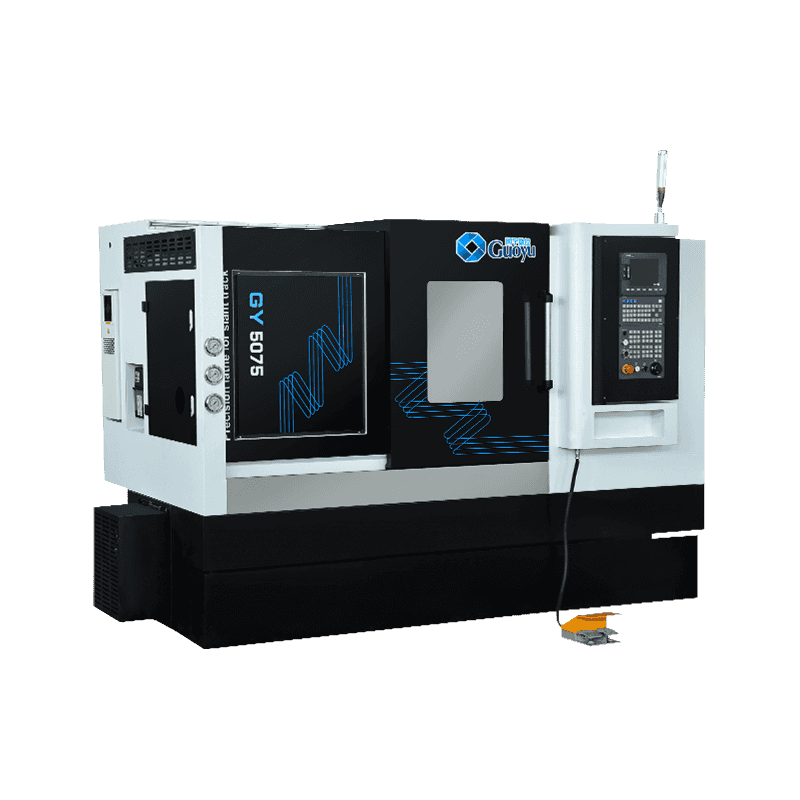

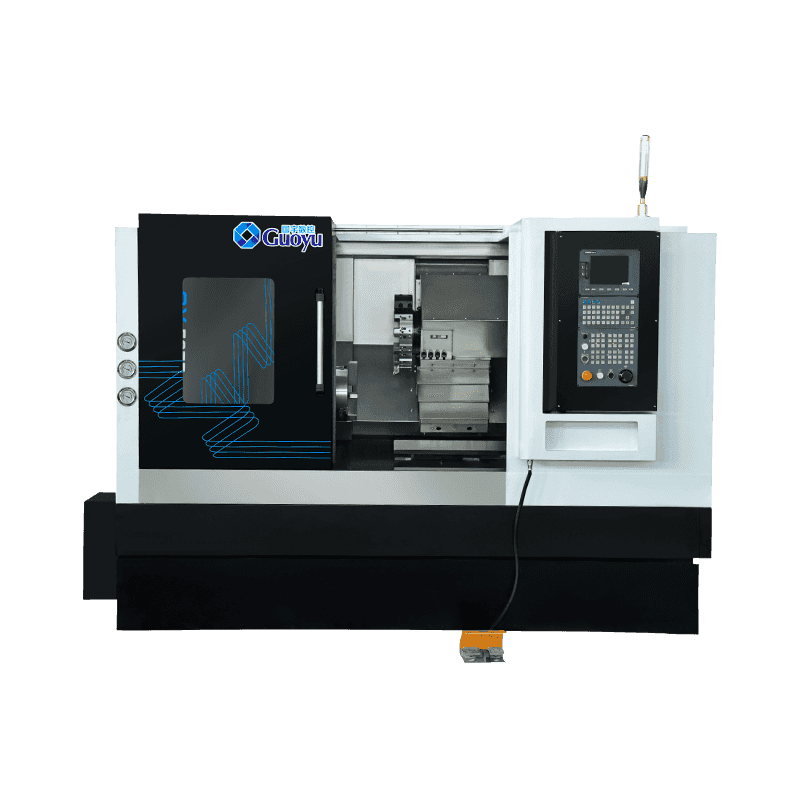

See DetailsThis slant bed CNC lathe with tailstock is a practical choice for producing many kinds of round, tubular, and shaft-style metal components where consistent turning quality and efficient machining time matter. It is often used for:
- Automotive turned components
- Components for general industrial machinery
- Hydraulic and pneumatic fitting components
- Hardware and metal fabrication workshops
- Parts for agricultural and heavy engineering equipment
- Longer shaft work requiring tailstock assistance
A one-piece 45° slant bed gives the machine a firm, balanced platform for turning operations, helping it remain steady when cutting forces increase. The angled layout also encourages chips to fall away from the work area instead of building up around the tool path, which is useful for keeping production runs cleaner and more consistent.
|
Projects
|
unit | GY-5075 | |
| PROCESSING CAPACITY | Maximum turning diameter of bed | mm | 450 |
| Maximum rotary diameter of support plate | mm | 260 | |
| Maximum machining length | mm | 750 | |
| MAIN SHAFT | Spindle end form | \ | A2-8 |
| Diameter of main shaft through hole | mm | 85 | |
| Maximum rod passing diameter | mm | 75 | |
| Maximum spindle speed | r/min | heavy load2500/r Light load3500/r |
|
| Spindle shift mode | \ | Servo infinitely variable speed | |
| Main motor power | kw | 11 | |
| Chuck type | \ | Hydraulic chucks | |
| Chuck size | inch | 10 | |
| FEED | X-axis stroke | mm | 450 |
| Z-axis stroke | mm | 820 | |
| X-axis fast-moving velocity | m/min | 20 | |
| Z-axis fast-moving velocity | m/min | 20 | |
| X-axis motor torque | N·m | 11.5 | |
| Z-axis motor torque | N·m | 11.5 | |
| Type of rail | \ | Roller guideways | |
| X-axis guide rail specifications | mm | 35 | |
| Z-axis guide rail specifications | mm | 35 | |
| X-axis made screw specification | mm | 3210 | |
| Z-axis made screw specification | mm | 4012 | |

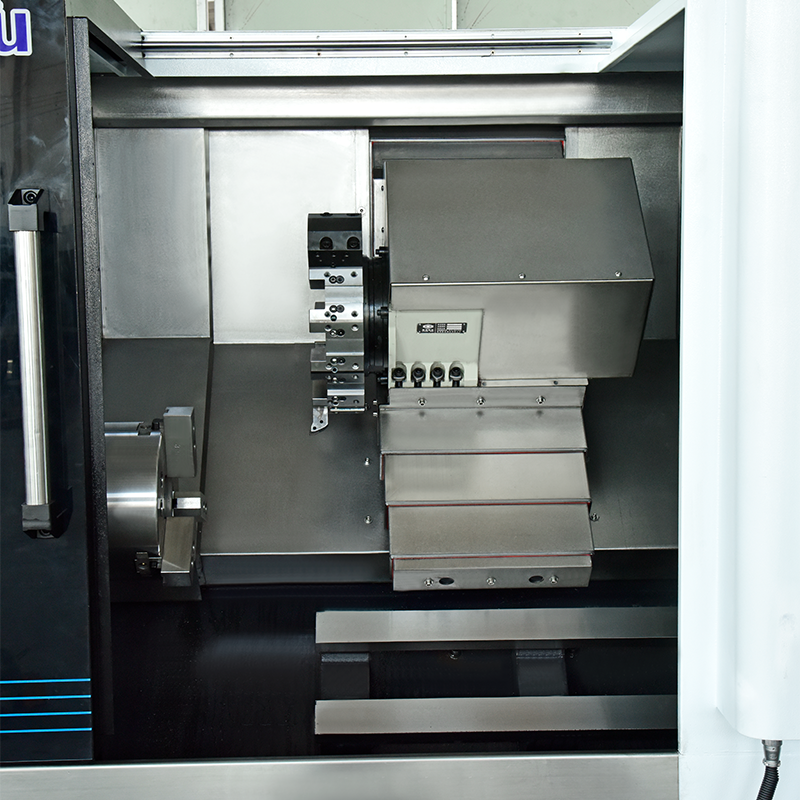

| TOOL REST | Tool rest type | \ | 12-station hydraulic turret |
| Square tool/Boring tool size | mm | 25*25/φ32 | |
| TAIL SEAT | Tail seat form | \ | Hydraulic tailstock |
| Tail seat sleeve taper | \ | MT-5 | |
| Tail seat sleeve diameter | mm | 80 | |
| Tail seat sleeve stroke | mm | 110 | |
| OTHER | Machine tool size (length* width* height) | mm | 2900*1700*1900 |
| Machine weight | kg | 4300 | |
