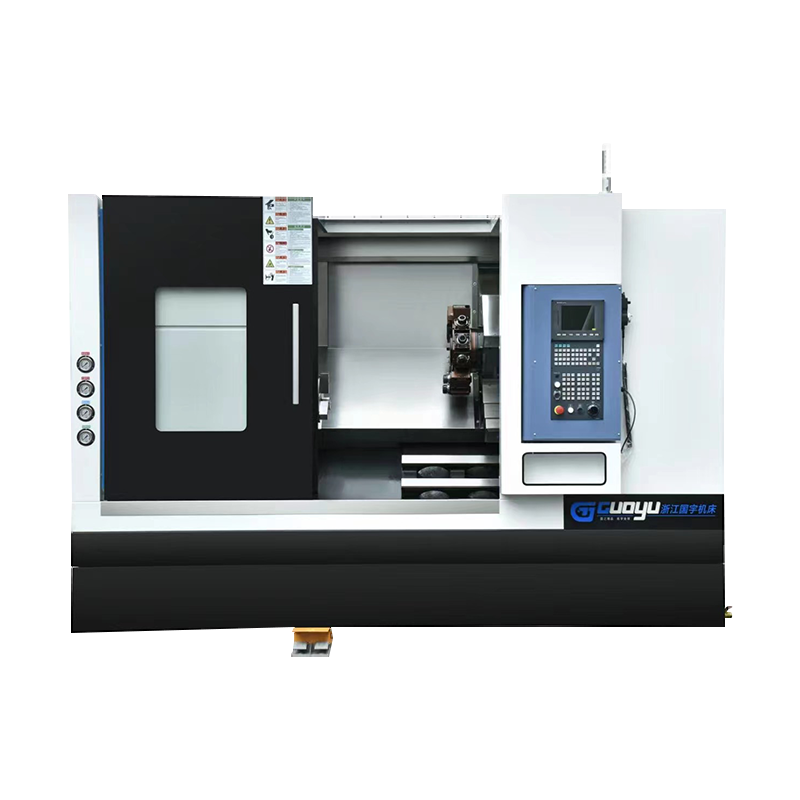

GY52100 Slant Bed Horizontal Line Rail CNC Lathe

Rigid cast structure for dependable heavy-duty turning

• The machine is built on an integrated cast base that provides strong overall support during machining, helping the lathe remain stable under heavier cutting loads and during longer production cycles.

Slant bed design for cleaner chip removal and easier working access

• The slant bed structure improves the way chips fall away from the cutting area, which helps keep the machining zone cleaner during operation. It also gives the operator a clearer view of the working area and more convenient access when setting tools, checking parts, or carrying out regular cleaning.

Servo spindle control for stable output across different machining needs

• The spindle is matched with a servo drive system, allowing speed changes to remain smooth and controlled throughout different turning tasks. This makes the machine easier to adapt to a variety of materials and part types while helping maintain steady spindle performance in daily production.

Strong low-speed torque for demanding workpieces

• The spindle drive is designed to deliver solid torque output at lower speeds, which is especially useful when machining larger diameters, heavier parts, or jobs that require more cutting force.

High-speed response for efficient turning cycles

• In addition to low-speed strength, the spindle starts, stops, and accelerates smoothly, helping improve rhythm in daily machining and supporting more efficient cycle performance.

Roller guideways for stable axis movement

• The X and Z axes use roller linear guideways that support rigid travel and precise movement, helping the machine maintain good positioning behavior during repeated turning operations.

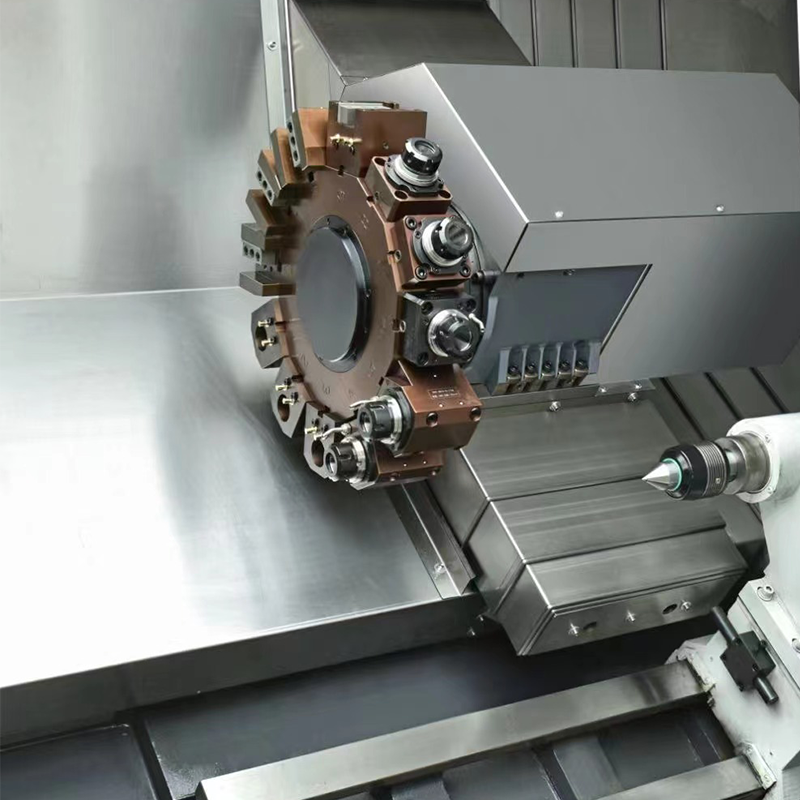

12-station live turret for greater machining flexibility

• Fitted with a BMT55 12-station power turret, the machine is capable of covering more turning operations in a single setup, while supporting quick indexing and smoother transitions between tools when machining more demanding part designs.

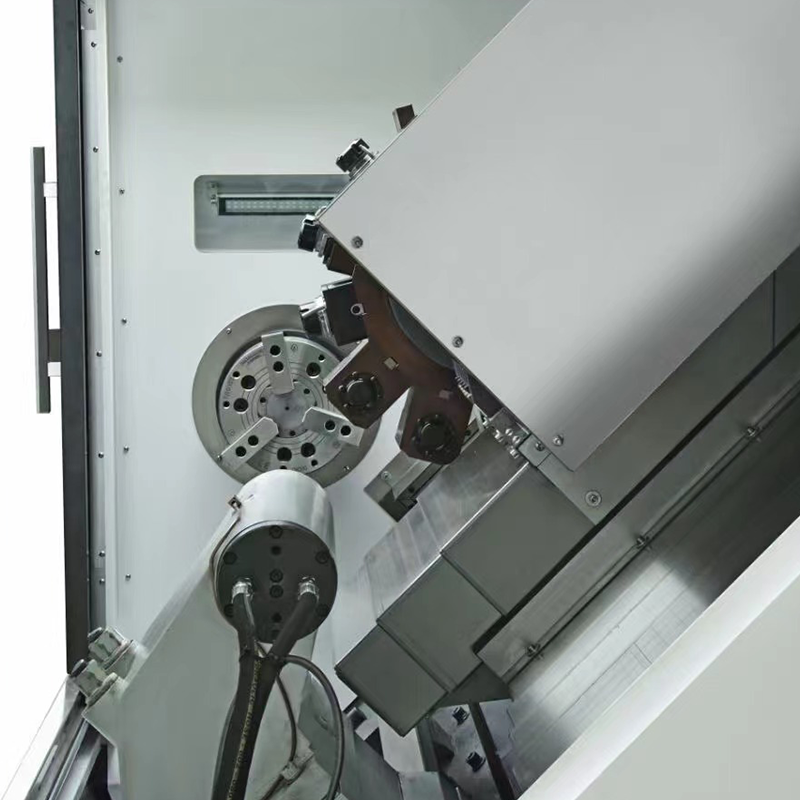

Hydraulic tailstock for improved support on longer parts

• The hydraulic tailstock gives extra backing to longer workpieces during turning, helping keep the part more stable throughout the cut and reducing the risk of deflection on shafts and other extended components.

Large spindle bore for bar stock and tube work

• With an 85 mm spindle bore and a maximum bar capacity of 75 mm, the machine is well suited to handling larger bar material and tube-based workpieces across a broad range of CNC turning jobs.
