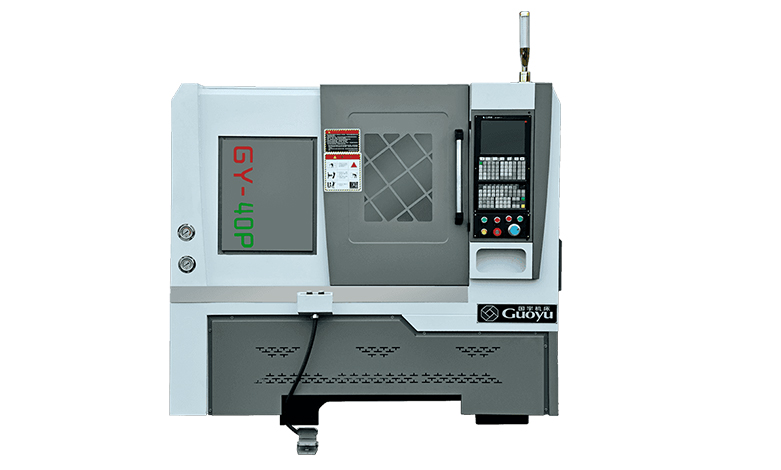

Parts of High Precision CNC Machine

High precision CNC (Computer Numerical Control) machines play a central role in modern manufacturing, particularly in industries that require accurate and repeatable machining. These machines are designed to perform a wide variety of tasks—such as milling, turning, drilling, and grinding—with a high level of precision. The performance and reliability of a CNC machine depend significantly on the quality, structure, and integration of its core components.

1. Machine Bed

The machine bed is the base structure of the CNC machine, providing foundational support for all other components. It is typically made of cast iron or other vibration-damping materials. The bed must be rigid and stable to resist mechanical stress during high-speed or heavy-duty machining.

Function: Supports the weight of the worktable, spindle, and tool turret.

Importance: A solid bed reduces deflection and vibration, which are critical to achieving consistent dimensional accuracy.

2. Spindle System

The spindle is one of the critical components in a CNC machine, responsible for rotating the cutting tool (in milling or drilling machines) or the workpiece (in turning centers).

Main Elements:

Spindle motor: Provides rotational power.

Bearings: Ensure smooth rotation with minimal runout.

Tool interface: Connects the cutting tool to the spindle shaft.

Function: Drives the tool or workpiece at controlled speeds with high concentricity.

Importance: The spindle's runout, stiffness, and speed control directly affect machining accuracy and surface finish.

3. Guideways and Rails

Guideways and linear rails provide the path along which machine elements—such as the table or tool head—move. There are several types, including box ways and linear rolling guides, each with specific characteristics.

Function: Ensure straight-line motion along the X, Y, and Z axes.

Importance: Precision-machined guideways reduce friction and maintain accuracy during repeated operations. Proper alignment and wear resistance are essential to ensure smooth and predictable movement.

4. Ball Screws and Servo Motors

Ball screws are used in conjunction with servo motors to convert rotary motion into precise linear movement. They are a fundamental part of the CNC drive system.

Ball Screws:

Consist of a threaded shaft and a ball nut with recirculating balls.

Minimize backlash and provide high repeatability.

Servo Motors:

Receive commands from the CNC controller.

Provide accurate speed and torque control.

Function: Move the worktable and tool head along designated axes with precision.

Importance: The combination of ball screws and servo motors allows for highly controlled positioning, essential for high-precision machining tasks.

5. Tool Changer (ATC)

Automatic tool changers (ATCs) are commonly found in CNC milling and machining centers.

Function: Automatically switch between multiple tools during a machining cycle.

Importance: Reduces manual intervention, increases production efficiency, and allows complex machining operations without stopping the machine.

6. CNC Controller

The CNC controller is the "brain" of the machine. It interprets G-code commands and converts them into electrical signals that direct the movement and actions of the machine.

Components:

Processor

Memory

Interface panels

Function: Manages all machine operations, including tool positioning, spindle speed, and feed rates.

Importance: High-performance controllers improve machining accuracy, cycle times, and user interface capabilities.

7. Worktable

The worktable holds and supports the workpiece during machining. It may include fixtures, vises, or custom jigs to secure parts.

Function: Provides a stable platform for machining operations.

Importance: A flat and accurately aligned worktable ensures proper contact between the tool and workpiece, which is essential for consistent machining results.

8. Coolant and Lubrication Systems

Proper cooling and lubrication are crucial for high-speed precision machining.

Coolant System: Delivers fluid to the cutting area to dissipate heat and flush away chips.

Lubrication System: Automatically delivers oil or grease to moving parts to minimize friction and wear.

Importance: These systems extend tool life, maintain part tolerances, and prevent thermal distortion during long machining cycles.
