Efficient and Safe Use: Linear Rail CNC Machine

The Linear Rail CNC Machine is a vital tool in modern manufacturing, prized for its precision, consistency, and efficiency in creating complex parts. It is used across various industries, including automotive, aerospace, electronics, and prototyping. While its capabilities are impressive, achieving results depends heavily on correct operation. Inappropriate use not only affects the quality of the output but may also shorten the lifespan of the machine.

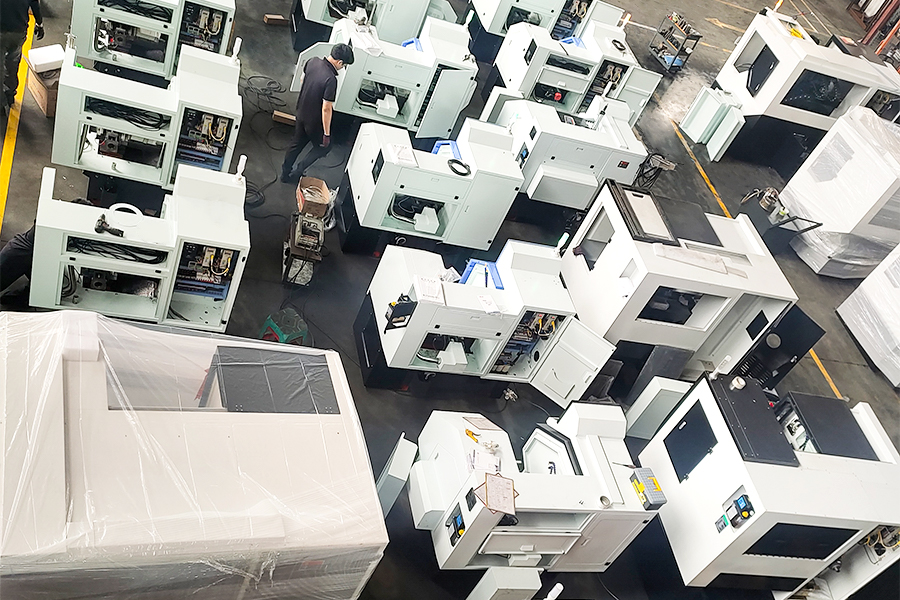

Linear Rail CNC Machine

Pre-Operation Inspection

Thorough inspection before each use is essential. Operators should check for signs of wear or damage on the linear rails, ball screws, belts, and motor assemblies. Cleanliness is also important—dust or debris on the linear rail can affect motion accuracy or even damage the bearings. The Linear Rail CNC Machine should be in a stable environment where temperature and humidity are within acceptable operating ranges. All moving parts must be properly lubricated, and any signs of oil leakage or mechanical misalignment should be addressed before operation begins.

Correct Installation and Leveling

Proper installation ensures that the Linear Rail CNC Machine functions as intended. The machine should be placed on a level surface to avoid distortion of the rail and frame alignment. Even slight unevenness can long-term wear and negatively impact machining accuracy. Using a precision level and ensuring the foundation is solid and vibration-free is key. Additionally, anchoring the machine properly reduces the risk of displacement during operation, especially when machining hard materials.

Software Calibration and Program Verification

Calibration is critical for any CNC equipment. The Linear Rail CNC Machine relies on software control to execute movements with high precision. After installation or repair, recalibration should be performed. This includes zeroing the axes and verifying tool path accuracy. Before beginning full production, it's a good practice to simulate the toolpath on the control software or run the program in "dry run" mode (without actual cutting). This helps detect any errors in G-code or coordinate positioning and prevents accidents or material waste.

Proper Workpiece Setup

Workholding is another essential factor. The workpiece must be securely clamped to prevent vibration or movement during machining. Loose material can inaccuracies and pose safety risks. Operators should choose appropriate fixturing techniques based on the shape, size, and material of the part. For repeated jobs, setting up reference points or jigs can improve efficiency. On the Linear Rail CNC Machine, ensuring the alignment of the workpiece with the machine axes is crucial for achieving the intended geometry.

Tool Selection and Handling

Selecting the right tool for the material and operation type ensures cutting performance. Each Linear Rail CNC Machine may have different spindle specifications, so tool compatibility should be verified. Operators should also confirm proper tool length offsets and ensure that the tool is securely mounted. Regularly inspecting cutting tools for signs of wear is important; dull or damaged tools reduce efficiency and increase the risk of material defects.

Monitoring During Operation

Once the Linear Rail CNC Machine is running, the operator should monitor it closely, especially during the few cycles. Sounds, vibrations, and tool paths should all be observed for consistency. Deviations may indicate issues such as misalignment, incorrect feeds and speeds, or faulty programming. Advanced models of the Linear Rail CNC Machine often come with sensors or alerts to notify operators of abnormalities. Taking prompt action helps prevent damage to both the machine and the workpiece.
